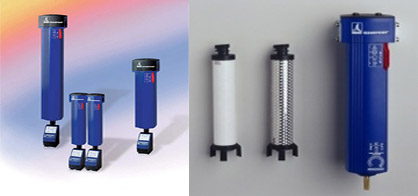

Condensate Air Processing - Filtration

  • Flow upto 31240 M3/Hr
  • Filters and water separators low and high upto 500 bar
  • Energy saving through low pressure drop & consistent for long time
  • 6 Layer borosilicate glass fibre filtration
  • Housing made of seawater resistant aluminium
  • Equipped with best condensate drains
  • In the world "bekomat".

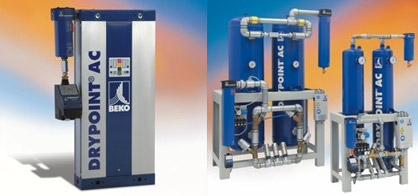

Condensate Air Processing - Drying

  • Flow upto 20000 m3/hr & more
  • Minimised pressure drop than any other make
  • Heatless, heat generated, blower type, heat o compression type absorption drying
  • Energy saving through compressor synchronisation control
  • Efficient drying due to effective filtration with 'clear point' condensate discharge through 'bekomat', best quality drying agent
  • The superior design of the dryer ensure to deliver specified dewpoints are assures always in all type weather conditions

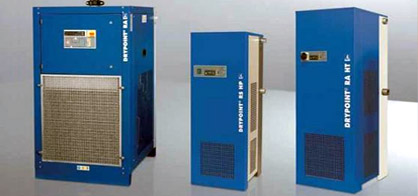

Condensate Air Processing - Drying

  • Flow upto 10800 m3/hr & more.
  • Highly effective heat exchanger
  • Available in air cooled, water cooled versions with digital thermometer in the control panel which display the dryer operation continuously
  • High efficiency condensate separator ensures high degree of moisture se per at ion in high humidity conditions with its large capacity
  • Large cross section of flow channels in heat exchanger leads to low velocities and reduced power consumption
  • Lowest possible pressure loss, even with varying loads

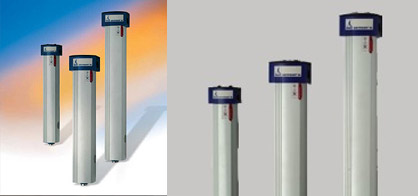

Condensate Air Processing - Drying

  • Compact, Easy combination with CLEARPONT filters
  • No maintenance. All parts integrated in one housing
  • Saves energy with twist 60 technology
  • Get hold of the advantages by drying compressed air with DRYPOINT M. The optimum for drying at the point of use
  • Available in various sizes for different drying degrees. Capacities upto 1000 1/min and more

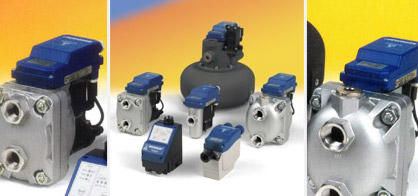

Condensate Technology - Discharge

  • World's best zero-air loss electrically level-controlled condensate drain
  • Intelligent control avoids loss of compressed air, thus permitting considerable energy saving
  • Non-wearing type sensor handles everytype condensate even it is heavily contaminated
  • Easy installation, led display on operation & fault indication
  • Special drains with hard- coated protection against aggressive condensates
  • Fully adoptable mounting enables horizontal or vertical mounting within no time

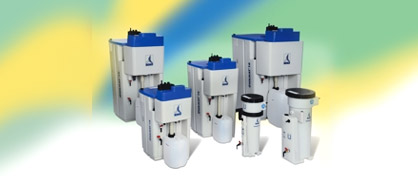

Condensate Technology - Processing

  • Effective oil/water separator for compressed air condensate
  • Water separation from different compressor oils like turbine oil, vdl oil, vcl oil and synthetic oil
  • Plant specific sizes
  • No energy costs
  • Payback within few months
  • Low Maintenance

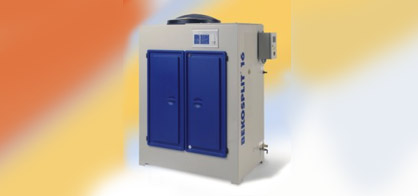

Condensate Technology - Processing

  • Separates oil/water emulsions- effectively
  • Suitable for treating oil containing industrial waste waters, water insoluble organic impurities- oils, vegetable or oil fats, heavy metals, dirt or paint particles present in the water
  • Functions without any aggressive cleaning agents
  • Consumes less energy
  • Allows longer maintenance intervals

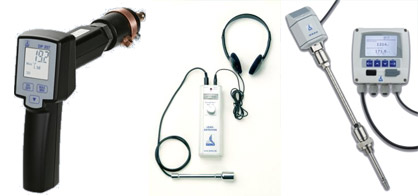

Measurement and Control

  • Stationary type, portable type and online models
  • Plug-in system, Pre set alarm values
  • High measurement accuracy
  • Durable measuring instrument with non corrodible, dirt repellent surface
  • Continuous monitoring of drying level and compressed air humidity

FLOW METER

  • Stationary type, portable type with software for data logging 3 in 1, can be used for dewpoint, temperature measurement also
  • Flow rate, total consumption and measurement in m3/hr, m3/min & cfm
  • Easy to Install 7 easy to operate with clear display with backlight

LEAK DETECTOR

  • Detect each and every leak in compressed air lines
  • Even at long distance (15m), places not easily accessible.

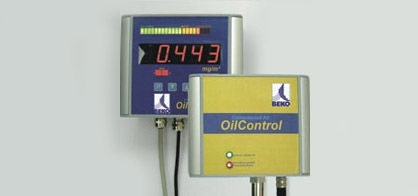

Measurement and Control

  • Oil control Monitoring gives round the clock information, 365 days a year
  • For the first time ever, online measurement of residual oil content in the compressed air
  • Early detection of malfunction
  • Easy integration into existing facilities
  • 3 types suitable for compressor, down stream of compressed air treatment & activated carbon filter monitoring
  • Color changing display for maximum safety

MEDBAC

  • Medical breathing air control round the clock, 365 days a year
  • Production monitoring as specified for aer medcalis
  • Protects patients and equipment against the consequences of malfunctioning
  • Continuous electronic, microprocessor- controlled monitoring
  • Adjustable alarm settings protected by password

Process Technology

  • Constant, oil-free compressed air better than DIN EN8573-1/ISO8573-1, Class 1 oil content
  • Independent of ambient temperature, air humidity, oil-inflow concentration
  • Environmentally friendly, clean, no hazardous waste, Clean, oil-free condensate
  • Long service life
  • Part-load operation without restriction
  • Granualte Life time >20000 Operating hours
  • For absolute process safety, Fail safe system
  • Max. Residual oil content with Bekomat down to 0.003 Mg/m3
  • Suitable for breathing air, Medical engineering, Pharmaceuticals measuring technology, Conveyance of hygroscopic food
  • A constant of oil free compressed air.

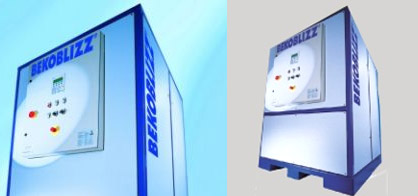

Process Technology

  • Deep cooling system delivers dry compressed air at very low temperature to -45 degree celcius
  • Intelligent, Three stage system technology for constant performance values in continuous load operation, even with fluctuating operation conditions
  • High performance heat exchangers
  • Electronically controlled self regulating refrigeration circuits
  • Three stage compressed air filtering in accordance with Din Iso 8573
  • Effective compressed air drying
  • Permanent electronic pressure dew point monitoring
  • Reduces cycle time, cooling times in blow moulding and rational moulding
  • Increases capacity in as injection moulding
  • Improves surfaces in thermo forming
  • Increases product quality by even cooling. Fast pay back.
